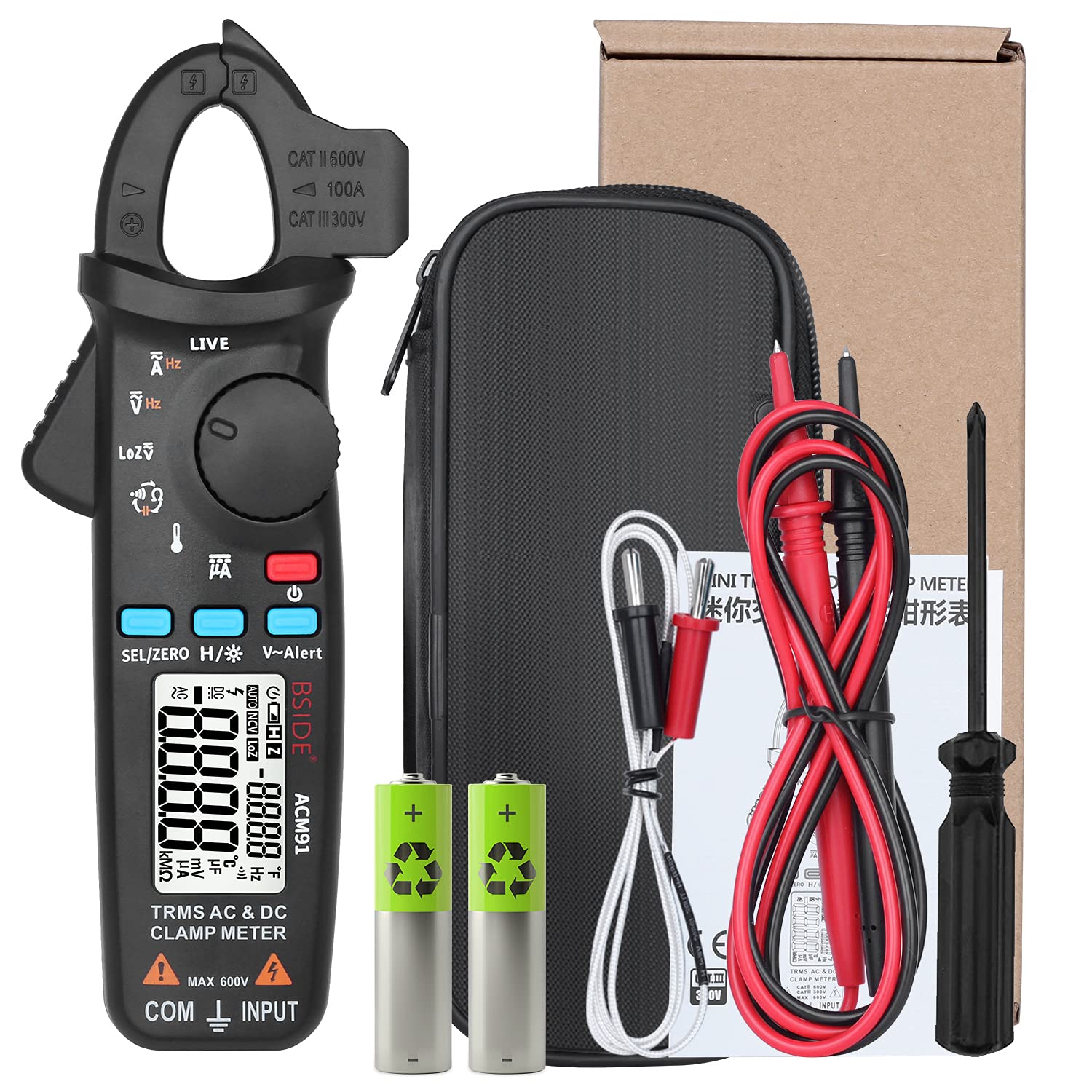

1mA DC Clamp Meter True RMS 6000 Counts Auto-Ranging Digital Multimeter Capacitance Temperature Ohm Live Check V-Alert Low Impedance Voltage Tester for HVAC Automotive

Features: Measure AC/DC current (minimum 1mA by jaws) Measure microamps μA (minimum 0.1μA by terminals) Measure AC/DC voltage V-alert measurement, live-wire check Measure frequency, temperature, resistance, continuity and capacitance Low impedance voltage measurement Clamp on frequency function Auto range, Auto power off, data hold, low battery indication with backlight Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts) DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts) AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts) DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts) Low impedance LOZ: Max 600V Resolution 0.1V Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts) 60MΩ 0.01MΩ ±(1.2%+20counts) Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts) Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds Temperature: -20℃~500℃ 1℃/2℉ ±(2.0%+2counts) Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 Size: 179 x 67 x 36 mm Weight: 137g Package Includes: 1 x Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x Carrying Case 1 x Screwdriver 2 x AAA Batteries 1 x User Manual

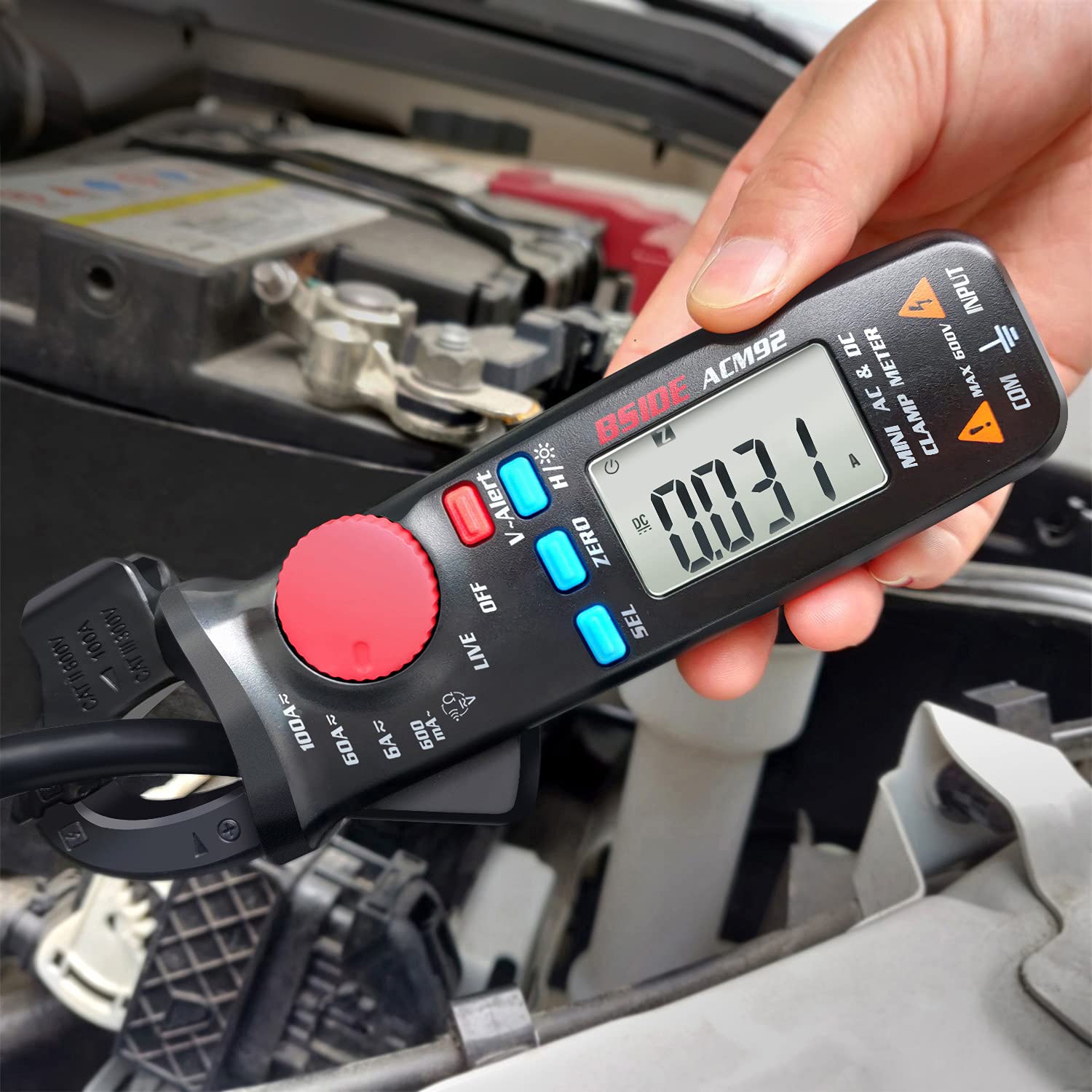

• [1mA Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.
• [Dual Line Display]: Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
• [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
• [Activate V-Alert at Any Function]: Activate V-Alert (non-contact voltage detection) function under any function design makes non-contact voltage testing more convenient.
• [Back Clip Design]: Back clip design make it more portable, hang on your belt or pocket.
• [Notice]: Before testing DC current, zero out the readings several times and hold the meter in the same orientation when taking readings. Because clamp meter is use the Hall effect sensor to detect dc current.
