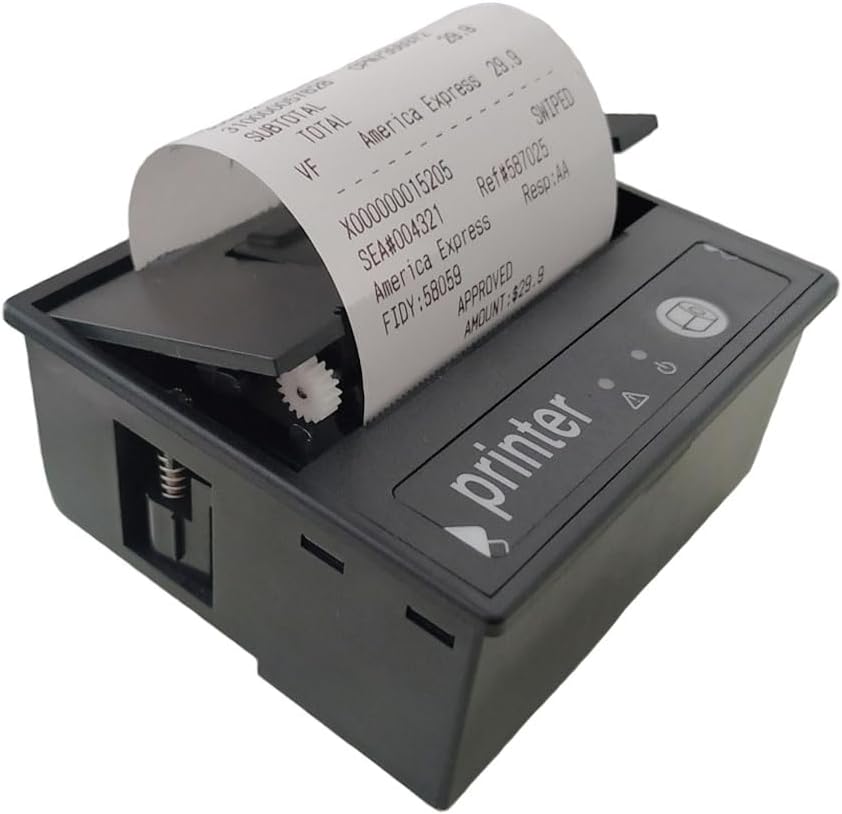

58mm Embedded Thermal Ticket Printer TTL Serial Port Printer Thermal Receipt Paper Printing Module 9-24V

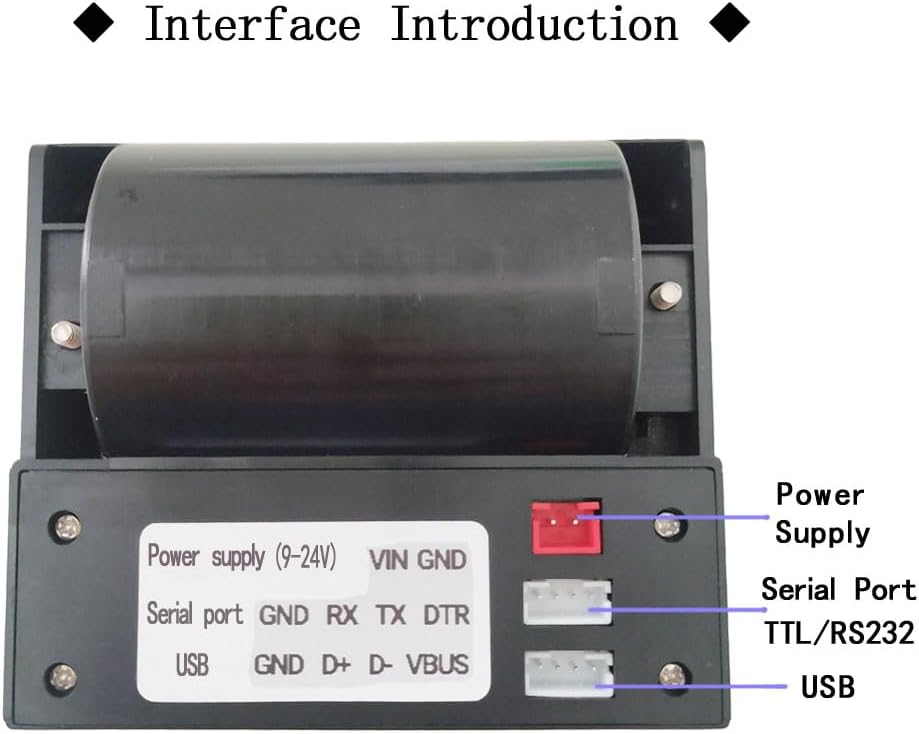

This printer supports printing text, barcodes, QR codes, images, and other content, and supports secondary development; The printer is configured with three different types of interfaces: TTL, RS232, and USB; Equipped with 4Pin serial port terminal cable and USB cable;Clear printing, fast paper output, and the paper bin can accommodate small paper rolls with a diameter of 40mm. The front panel opens the paper bin cover to change paper, making it convenient and fast. Hand tear paper. Compact and perfect appearance;The printer is an independent power interface, with a wide voltage version, supporting 9~24V; Current 3A; Supports docking with platforms such as microcontrollers, Android, Linux, and Win systems;If docking with the WIN system, we provide a USB driver. Make it more convenient for you to use the printing function;

• 58mm Thermal printer module With excellent connectivity, It is widely used in shopping malls and supermarkets, fire-fighting instruments, testing equipment, weighing and other equipment that needs to print thermal receipts. It supports secondary development and will perfectly cooperate with your equipment and be easily embedded in any type of instruments and meters.

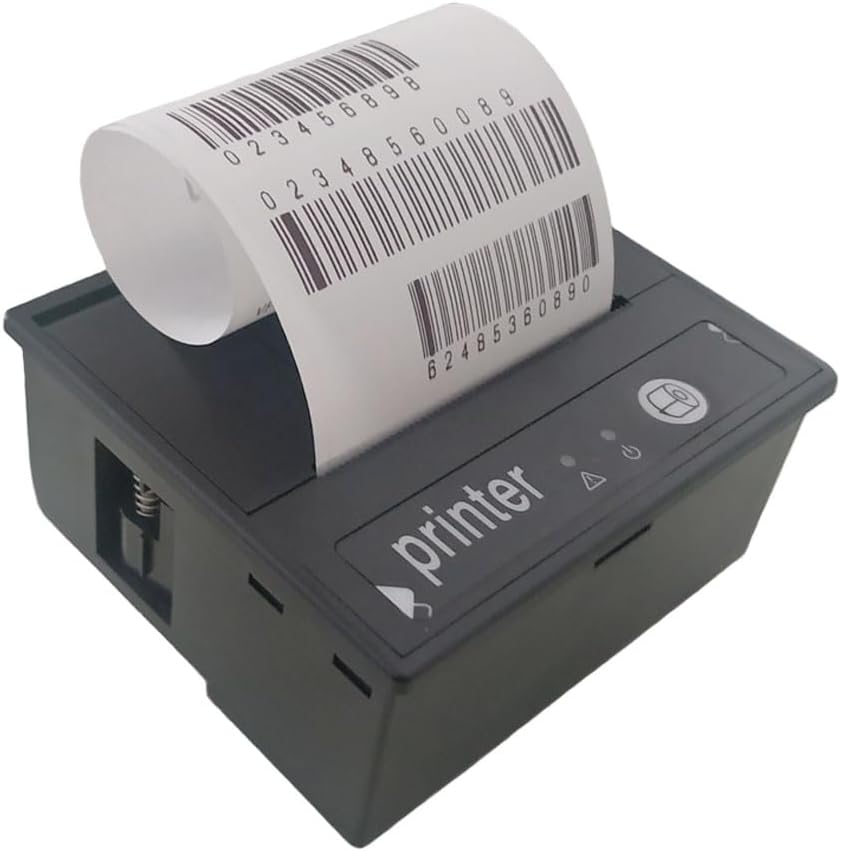

• Low noise thermal printing,Support text, bar code, QR code etc printing,Provide ESC/POS print instruction set And development materials.compatible systems: Windows, IOS, Linux, Android etc platforms;
• Opening the paper bin cover on the front panel to change paper is convenient and fast; The paper bin can accommodate 40mm diameter thermal sensitive small ticket paper rolls, with clear printing and compact appearance;
• This link defaults to TTL+USB interface, and the power supply is a wide voltage version that supports 9-24V3A; If you need an RS232 interface, please send us an email and we will guide you on how to switch to RS232.
• Item size: 87 * 76 * 49 mm / 3.43 * 2.99 * 1.93 inches; packing list: 1 * printer; 1 * USB cable; 1 * Serial port cable;1 * Small ticket paper;
